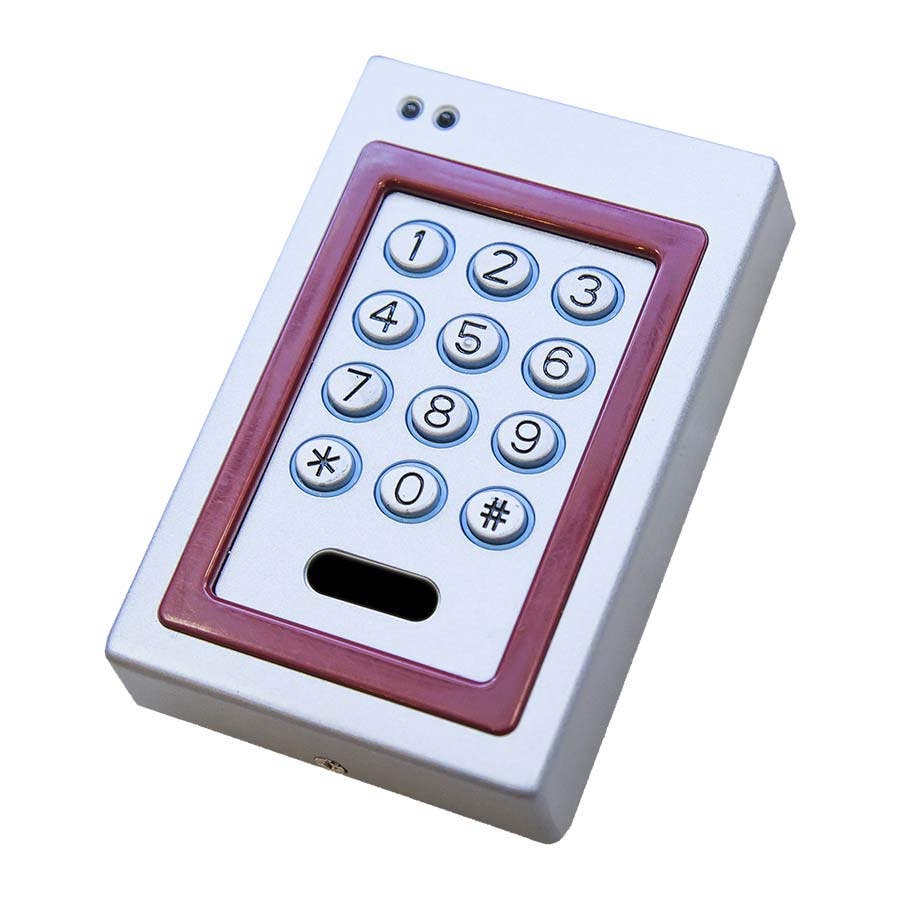

Wall Reader TCP/IP Reinforced
Wall Reader TCP/IP Reinforced

TCP/IP Access Control

Wall reader access control operated by code, by Mifare card or combining them.

Independent operation mode or TCP-IP on network, with reinforced design to increase security.

  • Sector: Hotels and Hospitality, Work Areas, Educational Environments, Health Centres, Sport and leisure centers, Institutional Buildings

Connectivity and safety in access control

Wall reader TCP/IP reinforced access control combines the functions of operation by numerical code and by Mifare proximity card.

The combination of keypad and card reader allows different modes of use: card only, card or password, card and password, password only.

This wall reader device manages the automatic change of the working mode.

The customer can define up to 15 different work timetables, with different work days, including vacation periods and up to 5 time slots each day.

Reinforced access control has the function of automatic timetable deactivation, designed for places without traffic in a time range during the day.

Added security function with the creation of master cards that are valid until a pre-established date.

Alarm systems incorporated:

  • Open door detection.
  • Sabotage of the mortise.
  • Broken door.
  • Impacts to/forcing of the device.

Output management of 2 relays and input management of output button and door status sensor.

Allows connection of Wiegand input reader
