Motion Sensor

The ECO-SENS range consists of different types and models of sensors for optimising the electrical consumption of the rooms, achieving savings of up to 60% in rooms equipped with ECO-SENS sensors.
Motion sensors determine whether the room is occupied, or not, and communicate it wirelessly to the wireless economiser, which manages the output relays according to the information received.

  • Sector: Hotels and Hospitality, Work Areas, Educational Environments, Health Centres, Sport and leisure centers, Institutional Buildings

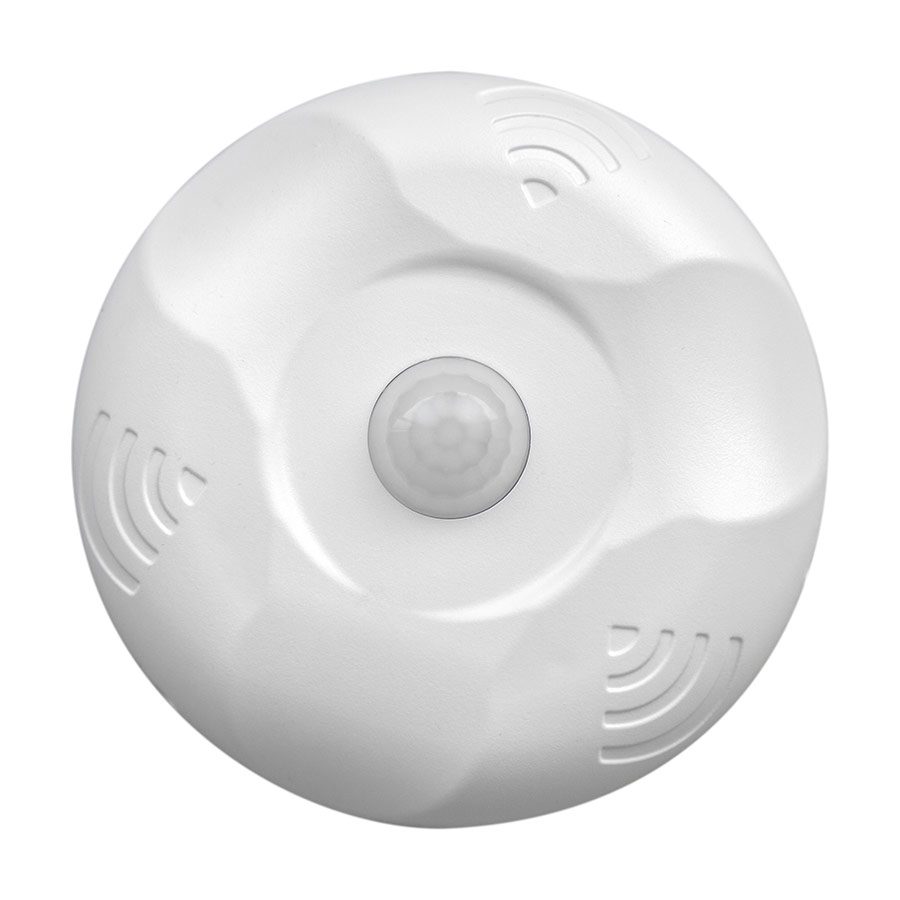

Overhead Surface Sensor

  • Overhead installation
  • Possibility of several sensors per room.
  • 10m coverage to the Wireless economiser.
  • IEEE802.15.4 wireless communication.
  • Dimensions 111mm Ø x 40mm.
  • Power supply with 3 LR3 1.5V (AAA) batteries.
  • 3-year autonomy.
  • Assembly height of 2.5-4 m.
  • Coverage 3m Ø installed at 3m height.
  • LED indicator.

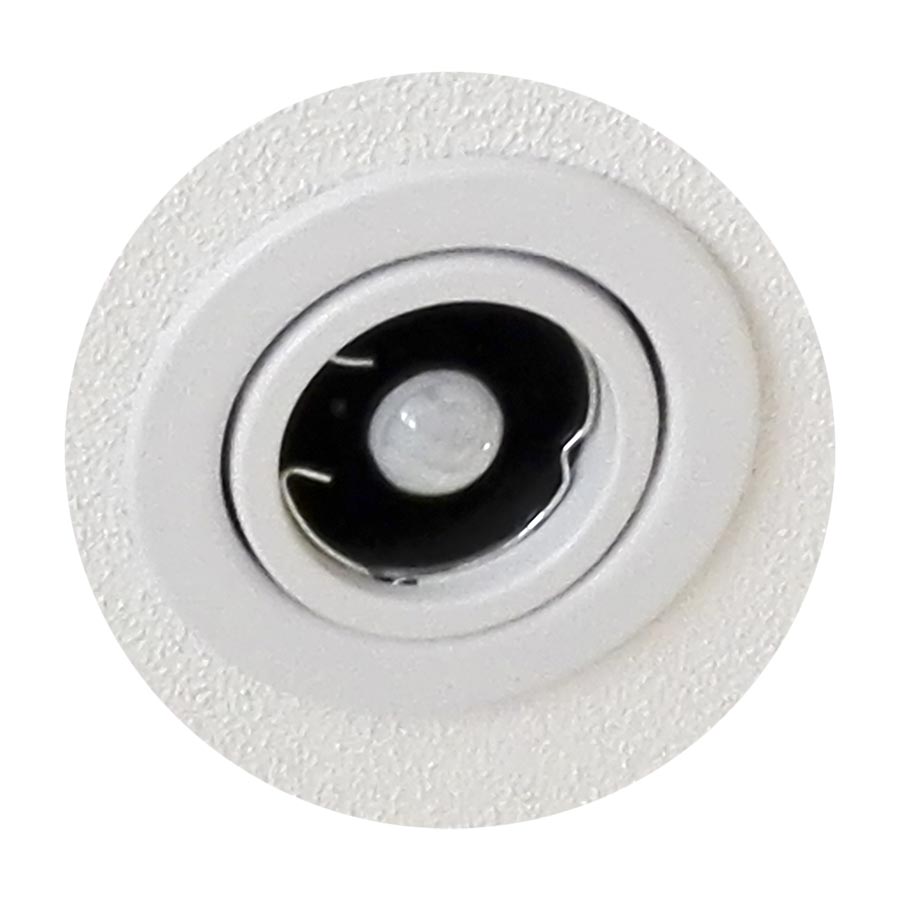

Overhead Recessed Sensor

  • Overhead, built-in installation.
  • Possibility of several sensors per room.
  • 10m coverage to the Wireless economiser.
  • IEEE802.15.4 wireless communication.
  • Dimensions 85mm Ø x 37mm.
  • Power supply with 1 CR123A 3V battery.
  • 5-year autonomy.
  • Assembly height up to 12m.
  • Coverage 6.9m x 5.8m installed at 2.5m height.
  • LED indicator.
  • Incorporates temperature and humidity sensor.

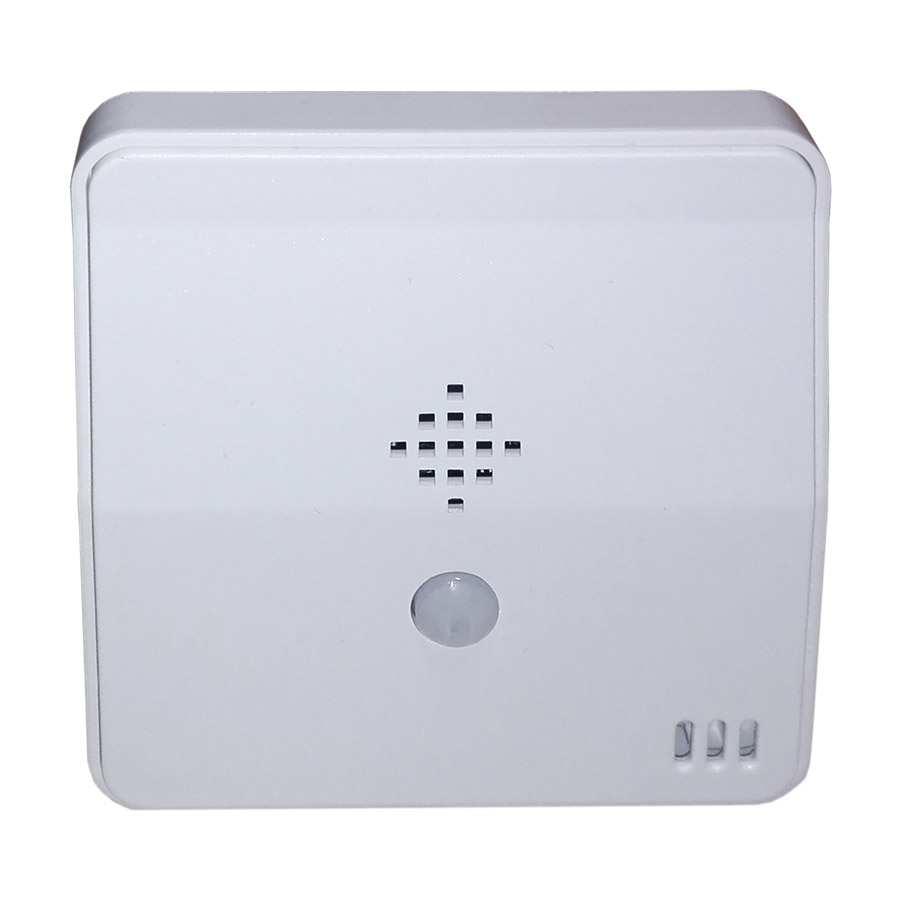

Wall Sensor

  • Wall installation.
  • Possibility of several sensors per room.
  • 10m coverage to the Wireless economiser.
  • IEEE802.15.4 wireless communication.
  • Dimensions: Recessed 80 x 80 x 17mm, overlaid 80 x 80 x 35mm.
  • Power supply with 1 CR123A 3V battery.
  • 3-year autonomy.
  • Coverage: horizontal angle 95°, vertical angle 20°, maximum distance 5m.
  • LED indicator.
  • Incorporates humidity sensor.
